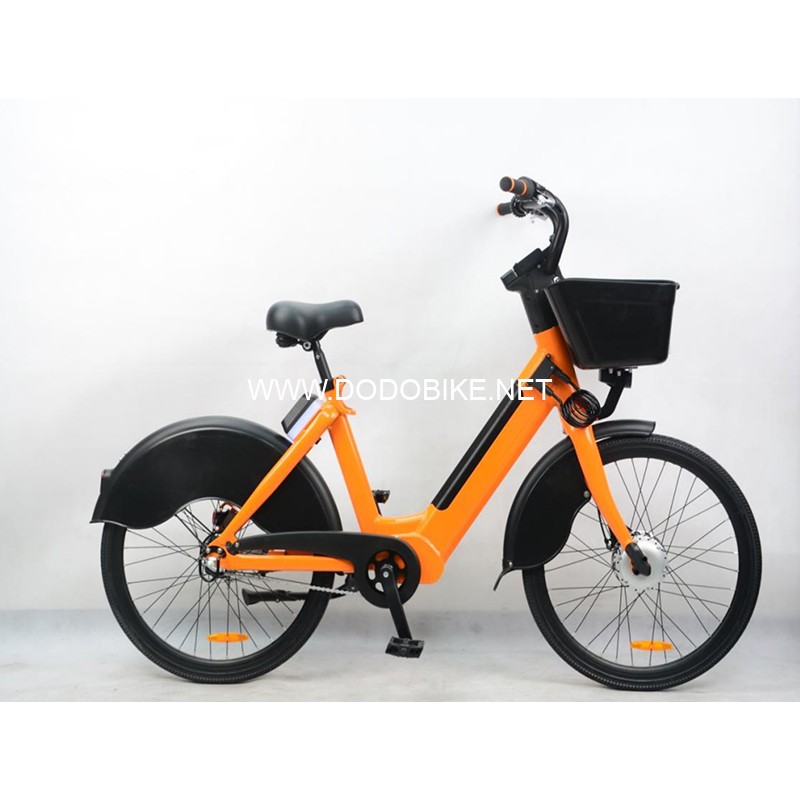

Model 型号 LJ-DOGX-26N3 LJ-DOGX-26N3
Net Weight 净重 37Kg 37Kg
Payload 载重 120 Kg 120Kg
Cruising range 续航里程 70Km 70Km Waterproof 防水
The vehicle is waterproof with an IPX5 rating, and the core components have an IP67 rating
整车防水IPX5，核心元件IP67
L.W.H 长.宽.高 1860*235*1140 1860*235*1140
FRAMESET 车架系统
Frame 车架 26 aluminum alloy low-span urban vehicle
frame 26铝合金低跨点城市车车架
Fork 前叉
Precision-cast multi-chamber high-carbon steel
front fork 精铸多腔高碳钢前叉
Headset 头管组件 Aluminum alloy bearing headset 铝合金轴承头管组件
E-SYSTEM 电气系统
Drive Unit 电机 36V250W 36V250W
Battery 电池 EVE/14AH/504Wh 亿纬/14AH/504Wh
Charger 充电器 42V3A 42V3A
Display 仪表 LCD 1.5寸 LCD 液晶仪表 1.5寸
Rear and rear
lights 前后灯 Front LED/ rear LED light-sensitive solar lamp 前LED/后LED光感太阳能灯
Phone stand 手机支架 Wireless charging phone stand 无线充电手机支架
Cable lock 钢缆锁 1.2meter spring lock rope 1.2米弹簧锁绳
Status light 呼吸灯 7color optional breathing lights 7色可选呼吸灯
Battery box lock 电池盒锁 The Internet of Things controls the battery lock 物联网控制电池锁
IOT 中控
Customized according to the requirements of
different countries 根据不同国家要求定制
DRIVETRAIN 传动系统
Shifters 变速器 SHIMANO ASL3S41E180LS 禧玛诺内三速转把
Chain 链条 KMC S1 RB KMC S1 RB
Crank 曲柄 Aluminum alloy crankshaft Iron gear disc 33T 铝合金曲柄 铁齿盘33T
Rear Cogs 后飞轮 SHIMANO ASMGEAR14L3RQC 禧玛诺14T
Sensor 传感器 BaFang Torque sensor SR PA232.32.ST 八方力矩传感器
BRAKES 刹车
Front brake 前刹车 SHIMANO ABRC6060FFAB 禧玛诺6060罗拉刹
Rear brake 后刹车 Electronic expansion lock 电子涨闸锁
Brake Levers 刹把 TEKTRO CL330TS 彦豪 CL330-TS
WHEELS 轮组
Front Hub 前花鼓 BaFang 26"/36V250W FM G321.250.R 八方26"/36V250W
Rear flower drum 后花鼓 SHIMANO ASG3R40A2070DX 禧玛诺内三速后轴
Rims 车圈 Aluminum alloy doublelayer rim（With
rivets）
铝合金双层车圈（带铆钉）
Spokes 辐条 45# steel spokes with copper caps 45#钢泳辐条, 带铜帽
Tires 轮胎 CST 26*1.75+PUInner tube CST 26*1.75+PU内胎
COMPONENTS 组件
Handlebar 车把
Aluminum alloy (Length: 690mm Maximum
diameter: 31.8mm Minimum diameter: 22.2mm Wall thickness：3.0T)
铝合金（长：690mm, 最大直径：31.8mm, 最小直径：22.2mm 壁厚：3.0T）
Stem 把立
Aluminum alloy liquid forging concealed
breaking gate wire structure 铝合金液锻隐藏式断开闸线结构
Grips 把套
TPR non-slip handle grip Double aluminium
ring (Length: about 130mm Length: about
95mm)
TPR防滑把套 双铝圈（长度：约130mm，
95mm）
Saddle 座垫 VELO vacuum fullfit saddle VELO真空全贴合座垫
Seatpost 座管
Aluminum alloy seat pipe (Length: 310mm, Diameter: 30.4mm)
铝合金座管（长度：310mm，直径：
30.4mm）
Quick
disassembly 快拆
The large aluminum alloy plate handle is quick disassembly
铝合金大板把快拆
