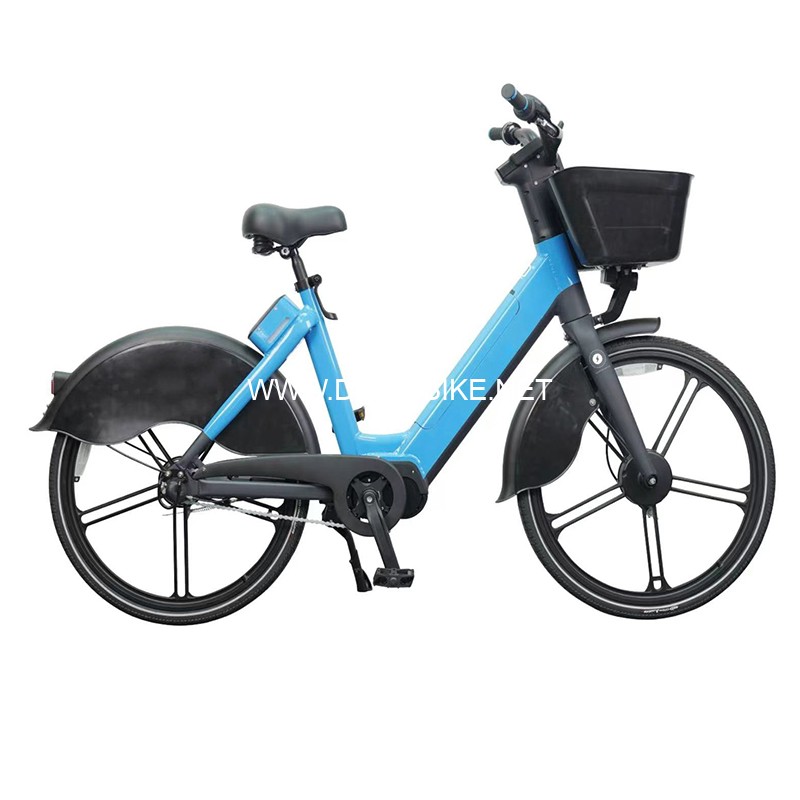

Model :LJ-TEQGX-26N3
Net Weight :37Kg.
Payload :120 Kg
Cruising range: 70Km
Waterproof
The vehicle is waterproof with an IPX5 rating, and the core components have an IP67 rating
L.W.H 1860*235*1140
FRAMESET
Frame 26 aluminum alloy low-span urban vehicle
Fork
Precision-cast multi-chamber high-carbon steel
front fork
Headset: Aluminum alloy bearing headset
E-SYSTEM
Drive Unit ANANDA Mid-mounted motorM400036V250W
M4000 36V250W
Battery EVE/14AH/504Wh
Charger 42V3A 42V3A
Display LCD 1.5寸 LCD
Rear and rear
lights Front and rear LED lights LED
Phone stand Ordinary mobile phone stand
Status light 7-color optional breathing lights 7
Battery box lock The Internet of Things controls the battery lock
IOT
Customized according to the requirements of
different countries
DRIVETRAIN
Shifters SHIMANO ASL3S41E180LS
Chain KMC S1 RB KMC S1 RB
Crank Aluminum alloy crankshaft Iron gear disc 36T
Rear Cogs SHIMANO ASMGEAR16LC SHIMANO 16T
Sensor ANANDA Mid-mounted motor M4000
BRAKES
Front brake:110mm drum brake 110mm
Rear brake: Electronic expansion lock
Brake Levers Aluminum alloy BL-428DGL/R BL-428DGL/R
WHEELS
Front Hub Magnesium alloy integral wheel, Palin shaft
Rear flower drum
Magnesium alloy integral wheel SHIMANO
ASG3R40N2070
Rims Magnesium alloy integral wheel
Tires CST 26*1.75Reflection ray+PUInner tube CST 26*1.75+PU
COMPONENTS
Handlebar
Aluminum alloy (Length: 660mm Maximum
diameter: 31.8mm Minimum diameter: 22.2mm Wall thickness：3.0T)
Stem
Aluminum alloy liquid forging concealed
breaking gate wire structure
Grips
TPR non-slip handle grip Double aluminium
ring ( Length: about 95mm)
Saddle VELO vacuum full-fit saddle VELO
Seatpost
Aluminum alloy seat pipe (Length: 310mm, Diameter: 30.4mm)
Quick
disassembly
The large aluminum alloy plate handle is quick- disassembly
